Flowcharts generated from real code

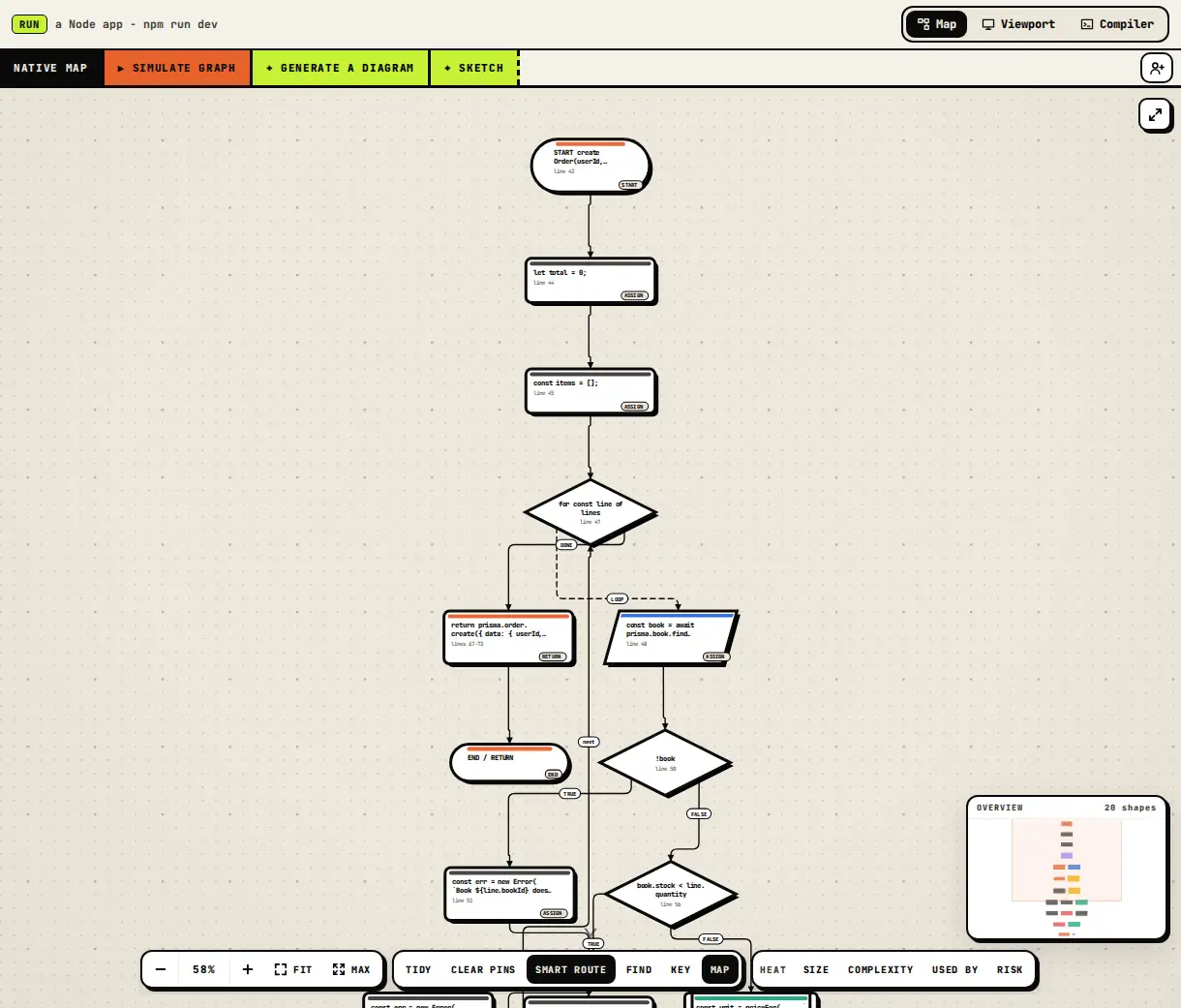

Click a file in VISCode and every function becomes a flowchart with standard shapes - terminator, process, decision, input/output, predefined process. Built from the function itself, so it is right, and it stays right when the code changes.
Open VISCode - free Connect your AI
What gets drawn
- if / else and switch as decisions, loops with their way back, try / catch / finally, early returns and throws.
- Calls to other functions as predefined processes you can open.
- Connectors routed around shapes; drag a pin to bend a line, right-click to restyle it.
Use it
- Simulate a path through the flowchart, or ask the AI what a branch does.
- Export the flowchart as PNG or SVG, or put it in a PDF or Word report.
Questions
Is the flowchart made by an AI?
No - it is built by parsing the function. The AI is only used when you ask it a question.
